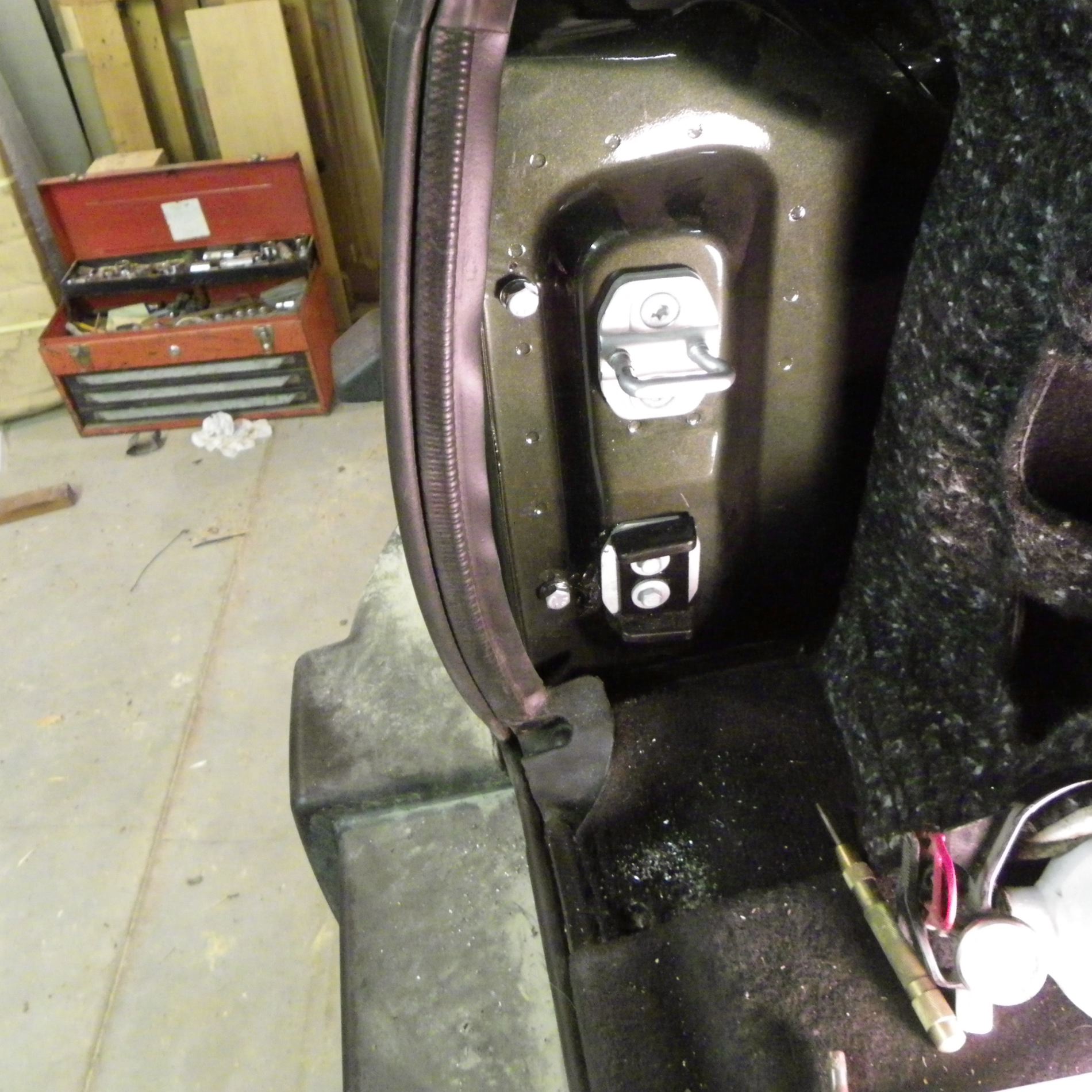

Bolts for the internal bracing for the landing block

This part of the installation is the most difficult part of the install. The location of the holes for the bolts in the picture were not quite where the directions indicated. I drilled a small pilot hole for the upper bolt location. I used a center punch to make a mark on the brace and then used the mark to correct measurements for the holes.
